CS Corporation Stop

CS Corporation Stops have been designed to inject chemical into the center stream of the flow.

Standard features include:

Sizes available are 1/2" (DN 15) to 3" (DN 75)
Available in 7 materials of construction
Available in threaded, socket, or flanged connections
Quill diameter sizes range from 1/4" (DN 8) to 2-1/2" (DN 65)
Field repairable
Hose Assemblies with isolation and external check valves available
Extensive variety of designs, materials, and sizes to best suit your application

Caution: When installing or removing quill from corporation valve gland, ensure that the system pressure is at 0 psig.

Corporation Stop

Further Details:

Sizes available are 1/2" (DN 15) to 3" (DN 75)
Available in brass, PVC, CPVC, PVDF, Stainless Steel, Alloy20, and Hastelloy. Other materials available upon request
Available in threaded, socket, or flanged connections
Field repairable
Maximum temperature (metallic options) of 176℃ (350℉)
Maximum pressure (metallic options) of 2000 psig
Custom insertion lengths available upon request

Further Details:

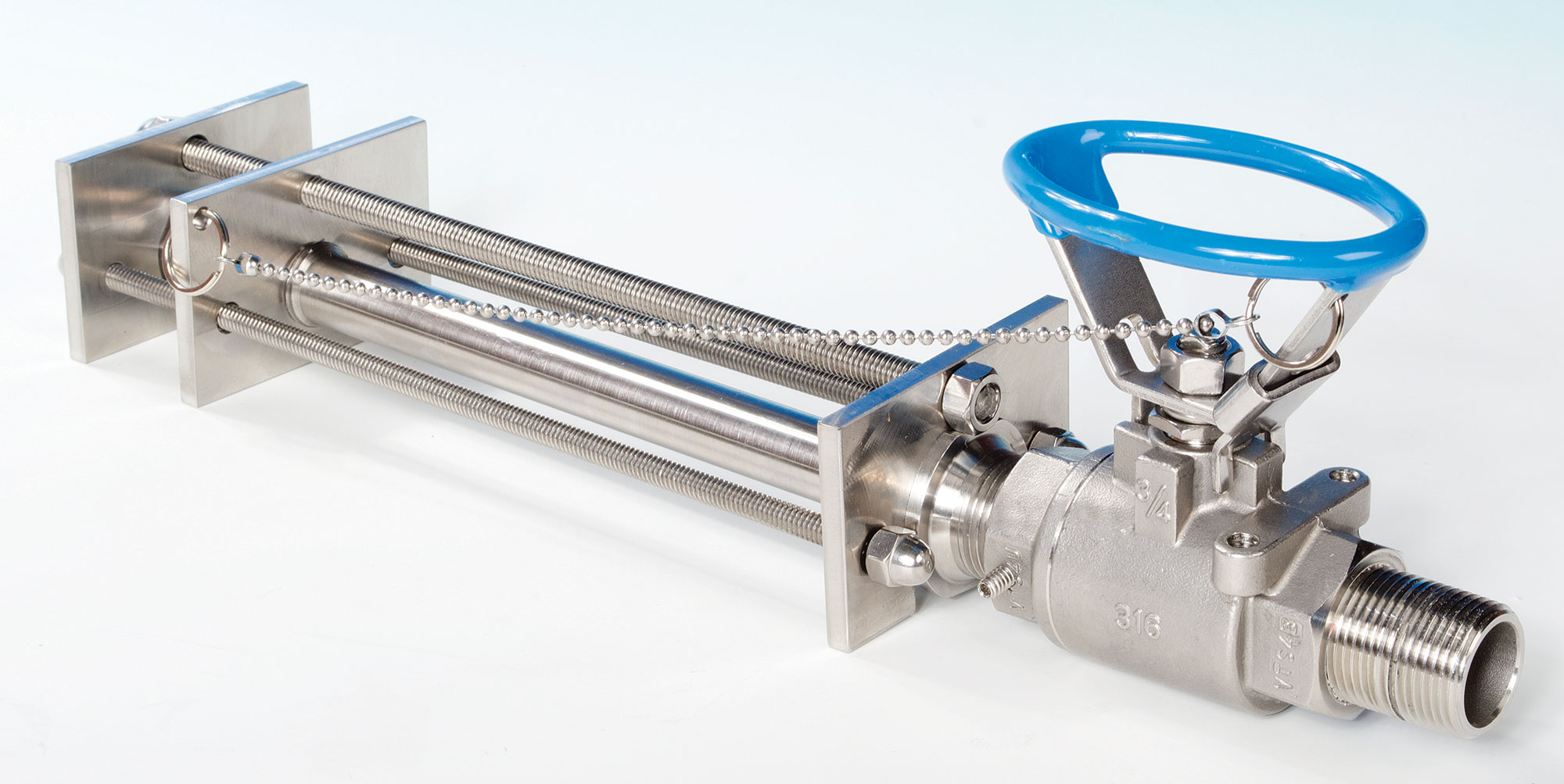

Allows installation and retrieval of the quill under full operating pressure up to 1000 psig
Titanium Gr. 5 retractable rod for compact design
3 materials of construction for greater durability: 316 S/S, Alloy 20, and Hastelloy
Connection in NPT, metric or flanged
Extensive variety of designs, materials, and size configurations to best suit your application
Retrofit kit is available for standard CS Corporation Stops

Further Details:

Brass body construction, meeting or exceeding the Lead Free (LF) requirements of less than 0.25%
Available with PVC or CPVC injection quills and couplings
Available in NPT or AWWA Pipe Connections in 3/4" or 1" sizes
Adjustable Insertion Length from 0 to 7.5" (19cm)
Field repairable
1/2" NPT chemical connection sizes standard
Stainless Steel Retainer cable for safe removal of quill from service
Maximum pressure to 150 PSIG (10 bar) at 68℉ (20℃)
