Accu-Pulse Pulsation Dampeners
Benefits of a Pulsation Dampener:
- Increase system efficiency and pump life
- Decrease maintenance and costs
- Protect pipes, meters, valves, and instrumentation from pulsation and vibration
- Ensure meter accuracy, longevity, and repeatability
- Reduce pressure fluctuations and diaphragm wear
- Prevent foaming and splashing
- CRN is now availabile on certain Accu-Pulse dampeners. Please contact factory for price and availability.
Accu-Pulse
Available features:
- Lightweight and compact design
- Sizes available between 4 cubic inch and 1155 cubic inch capacity
- Standard models pressure rated to 150 and 300 PSIG
- 3/8", 3/4" and 1" pipe connections for the 10 & 85 Cubic Inch models
- Available in 8 materials of construction, including PP, PVC, CPVC, PVDF, 316 S/S, Alloy 20, Carbon Steel, and Hastelloy C
- Bellows material available in 8 materials, including Neoprene, Buna-N, Hypalon, EPDM, Viton, Teflon, Santoprene, and Polyvinylchloride
- 2 year warranty

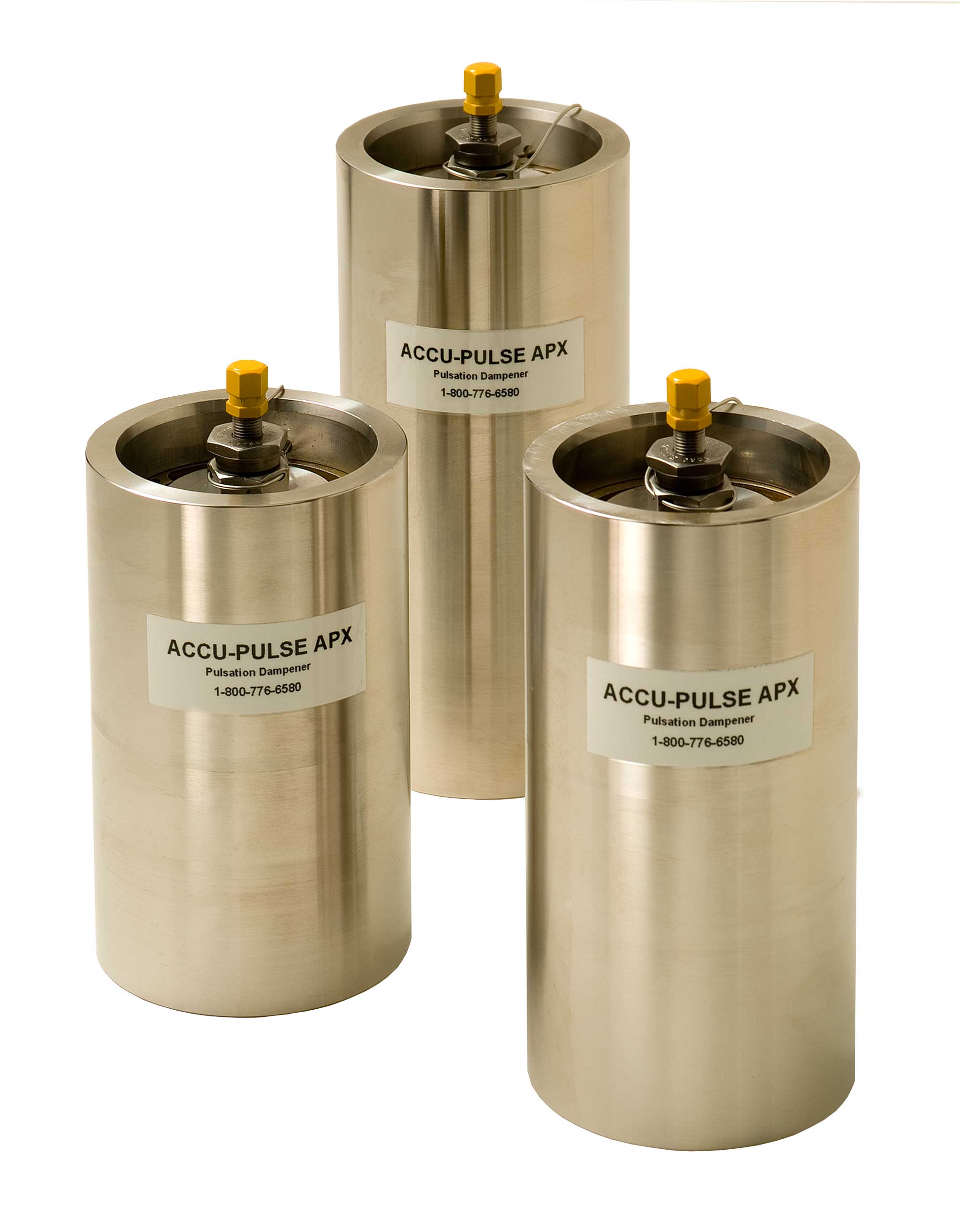

High Pressure Accu-Pulse APX
Standard features:
- Rugged 316L S/S Shell casing
- Standard elastomers are nitrile (Buna-N), EPDM, and FPM (Viton); other elastomers available
- Available in 4 to 1,098 cubic inch models (0.075L to 18L)
- Pressure range to a maximum of 2900 psi (200 BAR), dependent on model
- Larger capacities and higher pressures available upon request
More Information on Accu-Pulse
Accu-Pulse Ordering Information
Accu-Pulse Torque Specifications
Instruction Manual
Price Lists
Accu-Pulse Canadian Price List
Work Sheets
Application Worksheet for Reciprocating Pumps
Application Worksheet for Peristaltic Pumps
Application Worksheet for Air-Operated Double Diaphragm (AODD) Pumps
Literature for Each Model
Accu-Pulse I (API) - Plastic Dome Top
Accu-Pulse IF (APIF) - Plastic Flat Top
Accu-Pulse I (API) - Metal Dome Top
Accu-Pulse HI (APHI) - Metal Dome Top
Accu-Pulse IF (APIF) - Metal Flat Top
Accu-Pulse HIF (APHIF) - Metal Flat Top
Accu-Pulse II (APII) - Plastic Dome Top
Accu-Pulse IIF (APIIF) - Plastic Flat Top
Accu-Pulse II (APII) - Metal Dome Top
Accu-Pulse HII (APHII) - Metal Dome Top
Accu-Pulse IIF (APIIF) - Metal Flat Top
Accu-Pulse HIIF (APHIIF) - Metal Flat Top
Accu-Pulse III (APIII) - Plastic Dome Top
Accu-Pulse IIIF (APIIIF) - Plastic Flat Top
Accu-Pulse III (APIII) - Metal Dome Top
Accu-Pulse HIII (APHIII) - Metal Dome Top
Accu-Pulse IIIF (APIIIF) - Metal Flat Top
Accu-Pulse HIIIF (APHIIIF) - Metal Flat Top
Accu-Pulse - Sanitary Dampener
Accu-Pulse X (APX)- High Pressure Dampener
