PFS Injection Quills Sizing and Material Information:
|
Model
|
Overall Length
|
Insertion Length
|
Body Material
|
Ball Check Material
|
Check Spring Material
|
*Pressure Max PSIG
|
Temperature Max
|
|
IQF-53-PVC
|
5.5"
|
3"
|
PVC
|
Ceramic
|
Hastelloy
|
150
|
140ºF
(60ºC)
|
|
IQF-53-CPVC
|
5.5"
|
3"
|
CPVC
|
Ceramic
|
Hastelloy
|
150
|
210ºF
(98ºC)
|
|
IQF-53-PP
|
5.5"
|
3"
|
PP
|
Ceramic
|
Hastelloy
|
150
|
195ºF
(90ºC)
|
|
IQF-53-PVDF
|
5.5"
|
3"
|
PVDF
|
Ceramic
|
Hastelloy
|
150
|
260ºF
(125ºC)
|
|
IQF-53-3/16S/S
|
5.5"
|
3"
|
316
S/S
|
Ceramic
|
Hastelloy
|
3000
|
500ºF
(260ºC)
|
|
IQF-53-Hast
C
|
5.5"
|
3"
|
Hastelloy
|
Ceramic
|
Hastelloy
|
150
|
140ºF
(60ºC)
|
| |
|
|
|
|
|
|
|
|
IQF-55-PVC
|
7.5"
|
5"
|
PVC
|
Ceramic
|
Hastelloy
|
150
|
140ºF
(60ºC)
|
|
IQF-55-CPVC
|
7.5"
|
5"
|
CPVC
|
Ceramic
|
Hastelloy
|
150
|
210ºF
(98ºC)
|
|
IQF-55-PP
|
7.5"
|
5"
|
PP
|
Ceramic
|
Hastelloy
|
150
|
195ºF
(90ºC)
|
|
IQF-55-PVDF
|
7.5"
|
5"
|
PVDF
|
Ceramic
|
Hastelloy
|
150
|
260ºF
(125ºC)
|
|
IQF-55-3/16S/S
|
7.5"
|
5"
|
316
S/S
|
Ceramic
|
Hastelloy
|
3000
|
500ºF
(260ºC)
|
|
IQF-55-Hast
C
|
7.5"
|
5"
|
Hastelloy
|
Ceramic
|
Hastelloy
|
3000
|
500ºF
(260ºC)
|
* max. pressure @ 70°F(21°C)
working temp. ** longer
insertion lengths available for Hastelloy
quills.

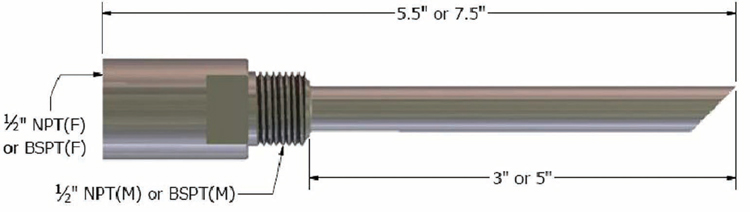

PFS Injection Quills Dimensional Information:
Note: Quills have standard
1/4" discharge orifice for higher capacity
flow.
